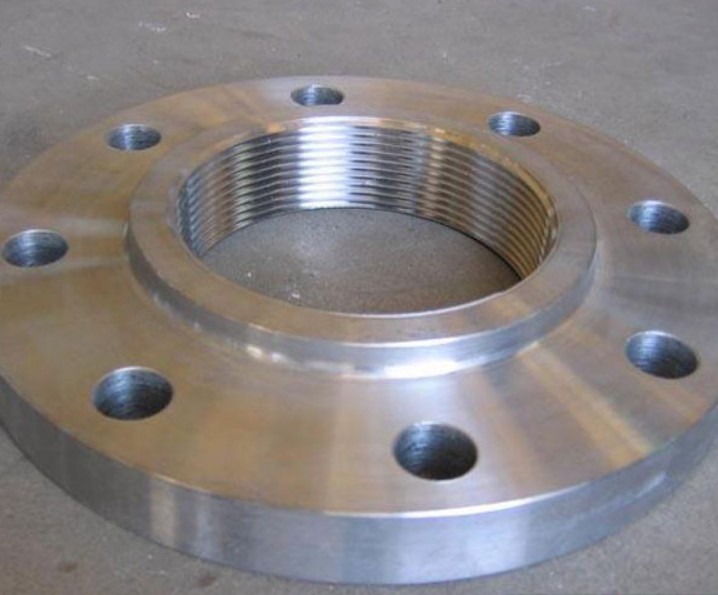

The JIS B2220 10K threaded flange dimensions as follows:
We manufacture the JIS B2220 10K threaded flange(TR Flange) in the nominal size 10A-150A. The products raw materials in our company are all supplied by Bao steel group and Shougang steel group which belong to Chinese government.
Outside diameter of flange: D Diameter of bolt hole centre circle: C Diameter of bolt hole: h
Thickness of Flange: t Diameter of hub Small diameter side: a Diameter of hub Large diameter side: b
Totle length of flange: T Radius of fillet: r
| TR Flange Nominal Size | Number of bolt | Nominal designation of thread of bolt | Nominal designation of thread | ||||||||
| A | D | C | h | t | a | b | T | r | |||
| 10 15 20 | 90 95 100 | 65 70 75 | 15 15 15 | 4 4 4 | M12 M12 M12 | Rc 3/8 Rc 1/2 Rc 3/4 | 12 12 14 | 23 27 33 | 26 30 36 | 16 16 20 | 4 4 4 |
| 25 32 40 | 125 135 140 | 90 100 105 | 19 19 19 | 4 4 4 | M16 M16 M16 | Rc 1 Rc 1 1/4 Rc 1 1/2 | 14 16 16 | 41 50 56 | 44 53 60 | 20 22 24 | 4 4 4 |
| 50 65 80 | 155 175 185 | 120 140 150 | 19 19 19 | 4 4 8 | M16 M16 M16 | Rc 2 Rc 2 1/2 Rc 3 | 16 18 18 | 69 86 99 | 73 91 105 | 24 27 30 | 4 4 4 |
| 90 100 125 150 | 195 210 250 280 | 160 175 210 240 | 19 19 23 23 | 8 8 8 8 | M16 M16 M20 M20 | – Rc 4 Rc 5 Rc 6 | 18 18 20 22 | – 127 154 182 | – 130 161 189 | – 36 40 40 | – 4 4 4 |
